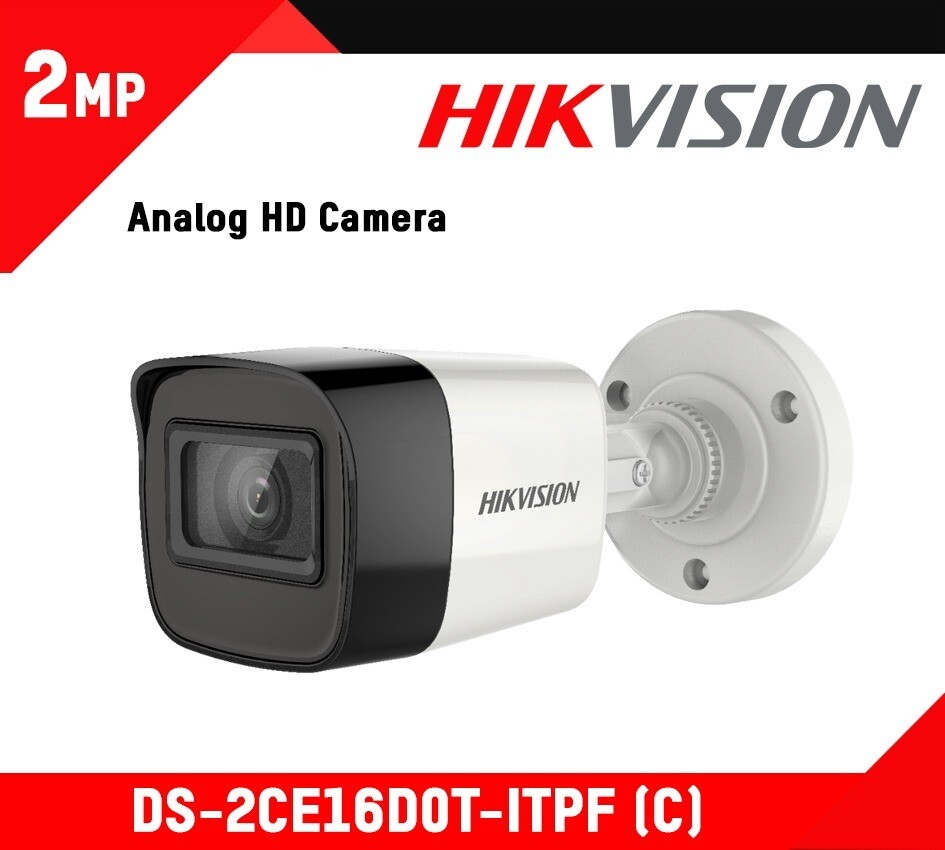

Hikvision DS-2CE16DOT-IP/ITPF 2MP Bullet Camera

Camera

Image Sensor: 2 MP CMOS

Signal System: PAL/NTSC

Resolution: 1920 (H) × 1080 (V)

Frame Rate:

TVI: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC

Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time: PAL: 1/25 s to 1/50, 000 s | NTSC: 1/30 s to 1/50, 000 s

Lens: 2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View:

2.8 mm, horizontal FOV: 106.4°, horizontal FOV: 57.9°, diagonal FOV: 124.6°

3.6 mm, horizontal FOV: 79.6°, horizontal FOV: 43.5°, diagonal FOV: 93.7°

6 mm, horizontal FOV: 51.9°, horizontal FOV: 30°, diagonal FOV: 58.8°

Lens Mount: M12

Day & Night: ICR

WDR (Wide Dynamic Range): Digital WDR

Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360°

Menu

Image Mode: STD/HIGH-SAT

AGC: Yes

Day/Night Mode: Auto/Color/BW (Black and White)

White Balance: Auto/Manual

AE (Auto Exposure) Mode: DWDR/BLC/HLC/Global

Noise Reduction: 2D DNR

Language: English

Function: Brightness, Sharpness, Smart IR

Interface

Video Output: Switchable TVI/AHD/CVI/CVBS

General

Operation Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Power Supply: 12 VDC ± 25%

Power Consumption: Max. 2.2 W

Protection Level: IP67

Material: Plastic

IR Range: Up to 25 m

Communication: HIKVISION-C

General

Dimensions: 57.9 mm × 60.9 mm × 138.8 mm (2.28" × 2.39" × 5.47")

Weight: Approx. 141 g (0.31 lb.)
